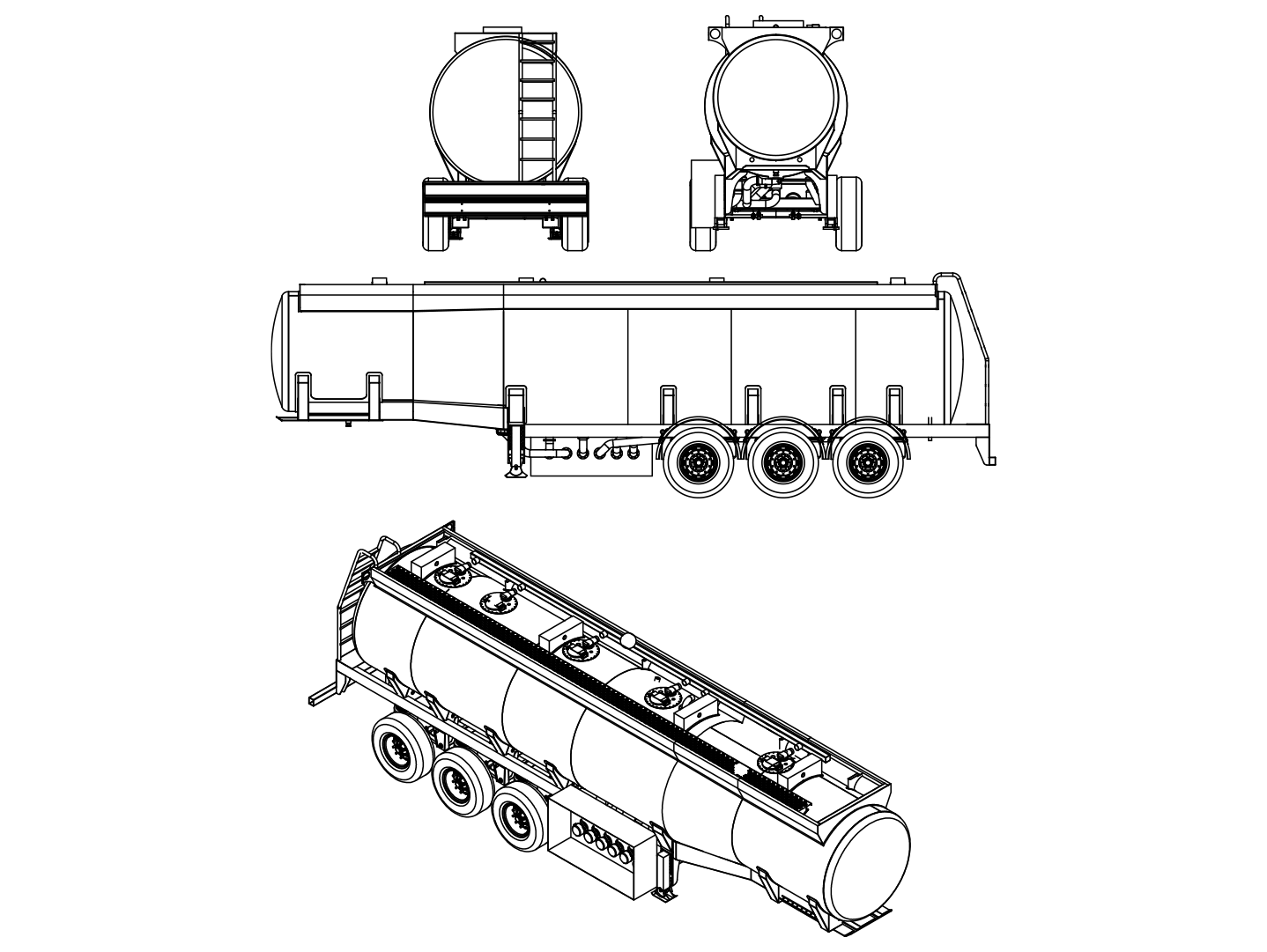

Steel Tanker Bottle Type

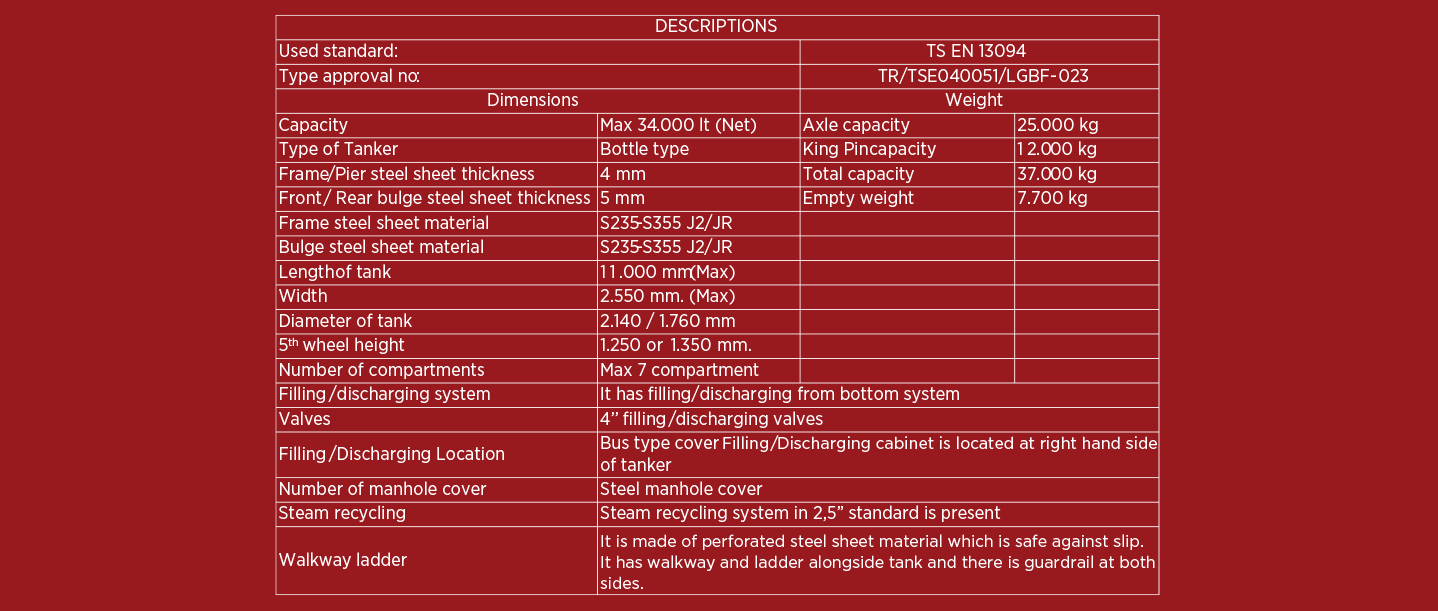

TECHNICAL SPECIFICATIONS
UNDER CARRIAGE
High-strength monoblock rolling chassis axle part made of profile. DIN 74083 standard 2" 42 CRMO4 steel king pin 10 mm ST52,3 quality king pin plate sheet is used.
AXLES
3 x 12 ton capacity drum or disc axles are used.
SUSPENSION
It is provided with 6 Pieces of 38 mm Z spring, 6 Pieces of Suspension placed between the axles. Cushion and 6 pieces of shock absorber
ELECTRICAL EQUIPMENT
It is compliant with SAE standards and ADR regulations.
BRAKE EQUIPMENT
Superior and safe brake equipment is provided with 2S/2M EBS+RSS brake system in EC standards.
TIRES AND RIMS
385/65 R 22.5 size 6+1 Nos radial tire and rim are used.
LIFTING JACK FOOT
Static 50 ton Dynamic 25 ton capacity, parallel operation, two-speed, hinged wide wooden, telescopic foot
PAINT
It is painted with special paint with complete 2+1 coat epoxy primer and acrylic paint. After washing and sandblasting on the chassis and tank. The inside of the tanker is unpainted. COLOR: Desired RAL code
SAFETY
Safety System that prevents the movement of the vehicle while the locker doors are open
There is a secondary grounding system inside the cabin.
ACCESSORIES
Plastic mudguards
- Steel toolbox
- Plastic water tank
- Spare wheel carrier Plastic wheel chock
- Aluminum bicycle collision barrier
- Fire cabinet and extinguisher
- Discharge Hose location 1 Piece of discharge hose
- Necessary warning and caution labels
Product code labels according to the type of material to be transported
